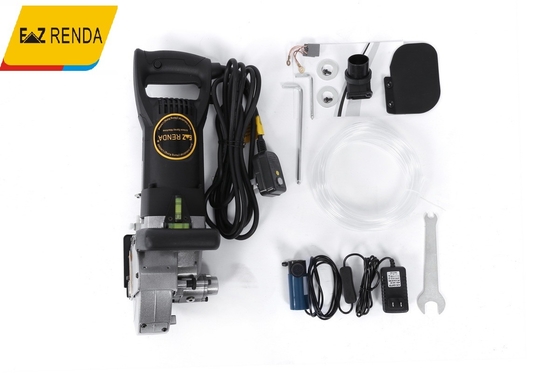

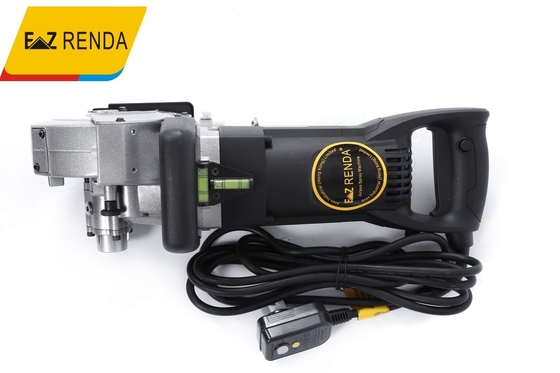

4800W 6.8KGS Portable Dustless Wall Chaser Machine for Slotting / Cutting / Grooving

4800W 6.8KGS Portable Dustless Wall Chaser Machine for Slotting Cutting Grooving

Production Description

The slotting machine is mainly used for repairing asphalt pavement and cement pavement, discharging water pipes, gas pipes, wire pipes and optical cable pipes. The road surface is cut into uniform grooves through disc saws to form a new joint. The contact layer between the grouting material and the slot can be optimized, and the tightness of the bonding material between the grouting material and the side wall of the slot can be strengthened.

15 times faster than manual work! Creats you a healthy and clean enviroment!

The machine is made by laser system, which is more precise connection with each part, more easy to install and more easy to maintain.

The handle of slotting machine is very user friendly, easy to hold

Main Feature of slotting machine:

1. Can slot 90 angle with one step slotting

2. Can slot nearly all kinds of walls and steel bars

3. Precise Cutting supported by horizontal and vertical gradienter

4. Removable sharp saw blades

5. Dustless enviroment supported by water pump

6. Adjustable slotting depth and width with easy operation: max 39mm depth, max 28mm width

7. Leakage Switch protection to ensure operator's safefy

How to achieve non-dust enviroment?

Connect the water pump and turn on the water switch while operating, then the water will come out to absorb the dust.

How to adjust the slotting depth?

There is a screw in the soleplate, you can adjust the screw to adjust the slotting depth?

How to adjust the slotting width?

You can remove or add saw blades to adjust the slotting width.
